Details

Key attributes

Name: ZG-CM381/B Intelligent Face Recognition Access Control
Brand: Teejoin
SKU: zg-cm381-b-intelligent-face-recognition-access-control-283

Industry-specific attributes

Feature：wifi APP Control：APP Control

Product Type：Smart Security Systems Application：Hotel, Home

Other attributes

Place of Origin：Guangdong, China Brand Name：TEEJOIN

Model Number：ZG-CM381/B Operation System：Android

Use：COMPUTER Private Mold：Yes

Product name：Android Linux Free SDK Software Terminal Face Recognition Intercom

Support：Multi Language Certification：ISO9001

Application：Security Access Control Management Resolution：800x1280(default)

DV：12-18V , DC 2A ETF：2000V

Data Storage Options：Cloud

Packaging and delivery

Packaging Details：

standard packing, Free SDK Software Tcp Wifi 4G Android Scren Intercom Face Recognition

Supply Ability

Supply Ability:50000 Piece/Pieces per Week

Lead time

Quantity (pieces)	1 - 100	> 3000
Lead time (days)	15	To be negotiated

Maximum order quantity: 10 piece Sample price:US$500.00/piece

Order sample

Customization

Customized logo Min. order: 1000

Customized packaging Min. order: 1000

Graphic customization Min. order: 1000

Product Description

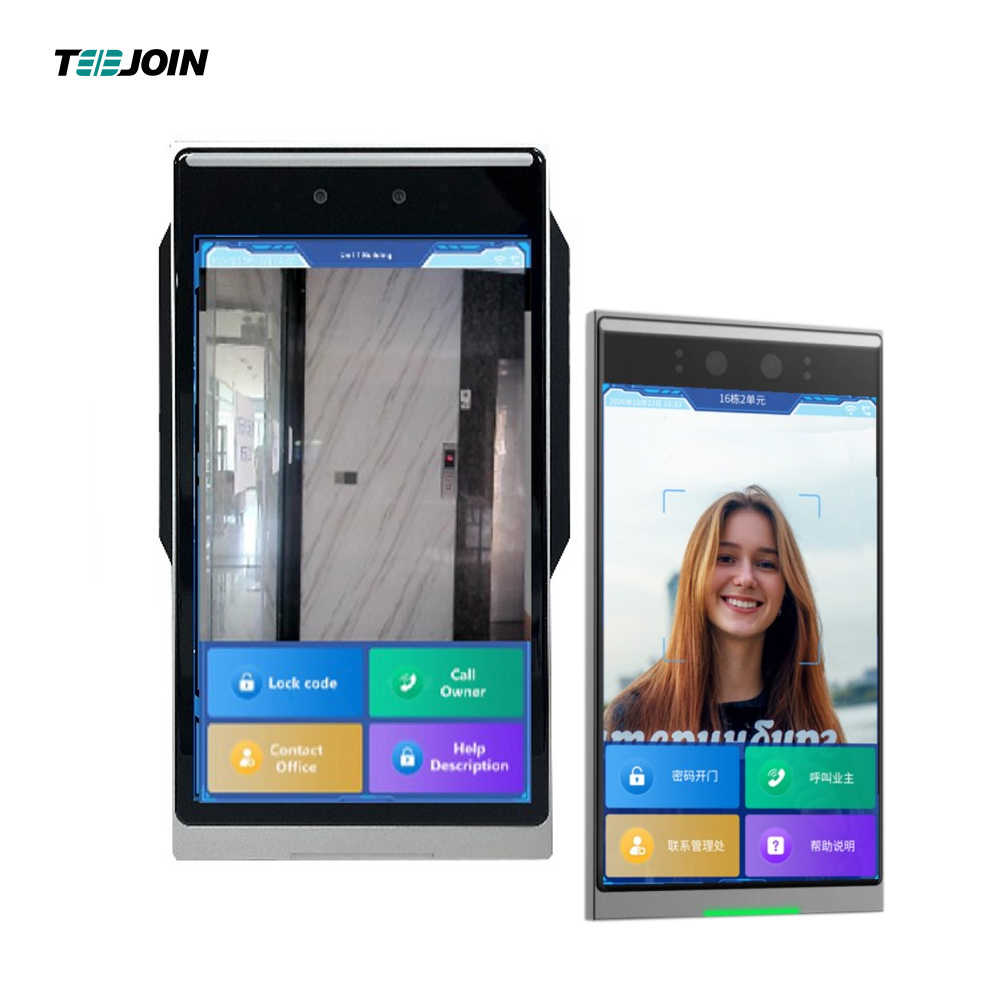

Android / Linux Free SDK Software Terminal Face Recognition Intercom

1. Product Overview
1.1 Product application field This product is a smart Android motherboard, suitable for face recognition terminals such as access control, turnstiles, and security terminal products, with a small product area and ultra-thin design, which is easy to embed in various complete equipment, such as: AI learning, AI speech recognition, with TensorFlow, Caffe and other mainstream deep learning computing frameworks used in artificial intelligence scenarios.
1.2 Product Overview
This product adopts RK3399 main chip scheme, CPU adopts dual-core Cortex-A72 large core + quad-core Cortex-A53 small core structure, single-core frequency up to 1.8GHZ, GPU adopts Mali-T86. The chip adopts 28nm process, no delivery risk, higher main frequency, smaller area, and more stable system. Powered by Android 7.1 operating system. The built-in 4K video decoder engine supports H.264, H.265 and other decoding and high-definition video, thus constituting a multi-media AP with high cost.
1.3 Product Applications
This product is suitable for access control, turnstile and other security
terminal products, the product area is small, ultra-thin design, easy to use in various scenarios, such as: schools, offices and communities access recognition and attendance sign-in, high-speed rail stations, airport boarding pass gates, private apartment doors, scenic spots, museums, research institutes and other public places of visitor acces

Product model	ZG-CM381/B
Screen	Size	22013019MM
	Resolution	800×1280 (default)
	Touch	Support
Main hardware	CPU	Dual-core Cortex-A72 large core + quad-core Cortex-A53, with a frequency of 2G
	GPU	Mali-T86
	memory	DDR comes standard with 2G
	Local storage	EMMC comes standard with 8G and supports external TF cards
Interface	Network module	SupportEthernet, wirelessperipheralexpansion,2.4GHz Wi-Fi ,built-in 4G
	Serial communication interface	1 x UART/RS232 socket
	Relay output	1 channel door opening signal output
	Wiegand interface	1 Wiegand 26/34 input/output
	Wired network interface	1 x RJ45 Ethernet socket
	Blue tooth	Support BLE 4.0
Motion SENSOR	Transmit frequenc	5.8GHz-
	3DB WAVE VELOCITY ANGLE	XZ 93°,YZ 70°
	Sensing distance	2-3 miller
Function	Face detection	20,000 faces, binocular live single recognition
	1:1 face comparison	Support
	Stranger detection	Support
	Identify distance configurations	Support
	Attendance and clock-in	Support
	Night-time sensing	Support
	Mask mode	Support
	Configure the UI	Support
	Remote device upgrades	Support
	Language	Chinese, English, Korean, Japanese, Thai,Mongolian, Portuguese
	How it is deployed	Stand-alone on-premise deployment;Networking cluster deployment
Generalparameters	Durability	5-10 Years
	Power supply	DC12V（±10%）
	Operating temperature	0℃~50℃
	Storage temperature	-20℃~60℃
	power consumption	13.5W（Max）
	Device dimensions	21712119mm
Camera	Resolution	200W*200W
	Aperture	F2.0
	Focal length	4.30m
	Dynamic range	105d
	Signal-to-noise ratio	41db
	Visible wide angle	73°
	White balance	In the tank
Palmar vein(optional)	Authentication method	Palmar vein recognition (1:N and 1:1recognition)
	Certification rate	The rejection rate FRR=0.01%, the falseadmission rate FAR = 0.0001%
	User capacity	The local< 1,000 people, and the onlineserver supports > 100,000 people
	Camera	2,000,000 pixels (monocular
	Identify the comparisontime	1:1 mode<1s; 1:N mode<2s (100,000 pcs)
QRscanner(optional)	Image (Pixels):	640 pixels (H) x 480 pixels (V)
	Light Source	White color LED
	Rotation Tilt DeflectionRoll / Pitch /	Yaw：360°, ±65° , ±60°
	Motion tolerance	40cm/s

Wall-mounted

Ethernet port	RJ45
Relays	Orange: NO, Brown: COM, Yellow: NC
Wiegand input	Light Green: WG1_D0, Purple: WG1_D1, Black: GND
Wiegand output	Gray: WG2_D0, White: WG2_D1, Red: DC12V+, Black: GND
RS485	White-violet: 485+, white-brown: 485-, black: GND
power supply	Red: +12V, Black: GND
Signal input	WHITE-RED: DOOR MAGNET, GREEN: OPEN, PINK: INPUT, BLACK: GND
USB	USB 2.0

Ethernet port	RJ45
Relays	1:NO，2:COM，3:NC
Wiegand input	1:DI0，2:DI1，3:GND
Wiegand output	1:12V+，2:GND，3:DO0，4:DO1
RS485	1:485+，2:485-，3:GND
power supply	DC12V IN
Signal input	1:INPUT,2:GND
USB	USB 2.0

Features:

1、CPU dual-core Cortex-A72 large core + quad-core Cortex-A53,frequency > 2G, GPU: Mali-T86

2、Camera binocular 200 wide dynamic range

3、The number of face users supported: 20,000, and (optional) thenumber of palm vein users: 1,000

4、8-inch high-split screen, IPS full viewing angle, 800*1280resolution, >500 open stream. Multi-touch.

5、The motherboard integrates 4G module, and the communication ismore stable. External card insertion, and there is securityprotection, anti-unplugging.

6、Support anti-folding alarm and fire alarm input.

7、Support guest video call, remote door opening, and dynamicpassword door opening.

8、Support 2W face library. The recognition rate is 99.67%. The speedof face recognition is 0.3 seconds

9、Support applet, APP video call, remote door opening, userregistration, etc.

10、The management platform supports WEB deployment and domesticoperating system.

11、Support announcement notification, video playback, and supportusers to set playback policies.

Android Linux Free SDK Software Terminal Face Recognition Intercom

Android Linux support SDK Software API Facial Recognition Device Access Control

Android/ Linux Free SDK Software Terminal Face Recognition Intercom
